RCM01
The RCM01 Robotic Cylinder Mower delivers tournament-grade turf quality with high precision. Combining RTK and LiDAR for flawless navigation in any environment, it offers a fully autonomous and efficient solution to maintain world-class golf courses and sports fields.
Impressive Feature Suite
5-Min Setup
Intelligent Object Avoidance
Smart Path Planning
RTK & Vision Navigation
No Perimeter Wires
Mows up to 7.4 acres/24hr

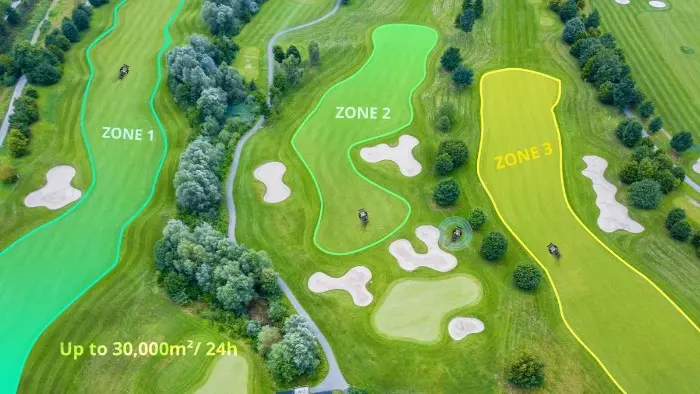

Multi Zone Management
Quiet Nighttime Operation
Perfection on Every Blade. Autonomy in Every Corner.
Reliable and Effiecient Operation

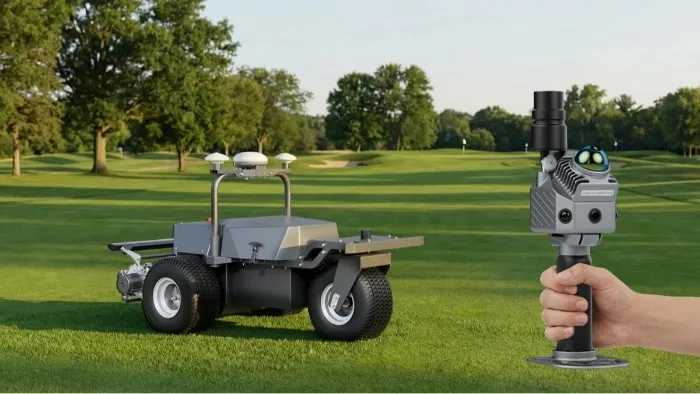

Fast Mapping
Create maps within minutes by using the scanner - no need to drive the mowing robot to the field

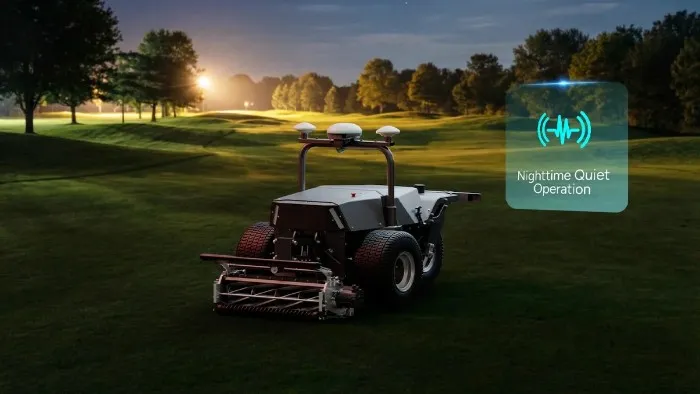

Nightime Quite Operation
Enable autonomous mowing at night , freeing up daytime hours for golf course activities and reducing distraction to players.
Professional Turf Performance

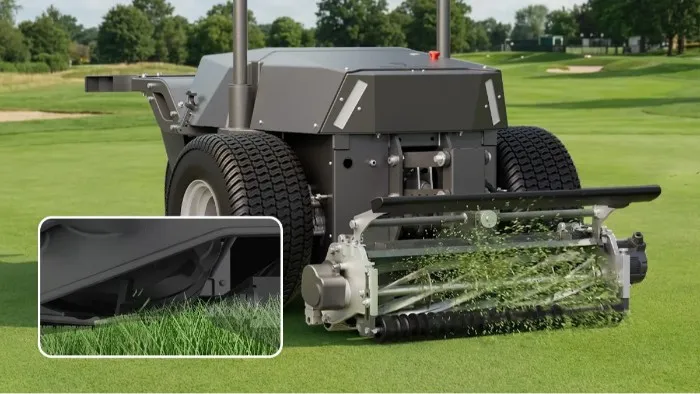

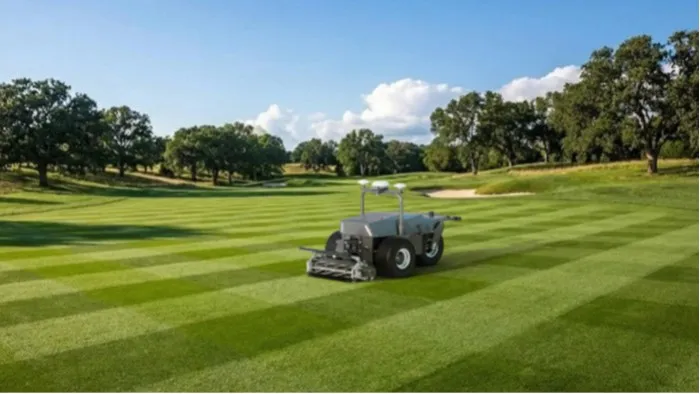

Professional Grade Stripping
Create clean, high contrast stripes with precision roller blades. You can also customize striping widths to match your golf course's style.

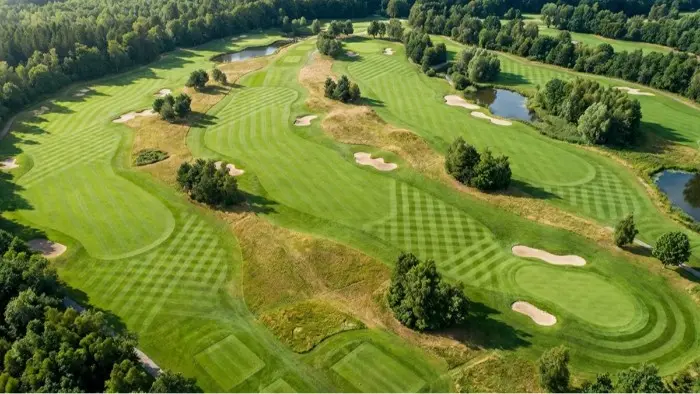

Shape the Turf, Define the Look
Adjust the mowing angle to easily to change the width and direction of the stripes. This lets you create neat, professional, and custom patterns on your turf.
| Max Mowing Area* |
24-Hour Max Coverage 30,000㎡ (7.4 acres) 72-Hour Max Coverage 90,000㎡ (22.2 acres) |
| Max Mowing Area per Hour | 1,800㎡ (0.4 acres) |
| Max Mowing Area per Charge | 20,000㎡ (5 acres) |
| Max Climbing Ability td> | 20° |
| Max Mowing Slope | 50° |
| Boundary Type | Virtual Wire |
| Cutting Mode | Customized Angle Mowing |
| Weight | 365 kg (804.69 lb) |
| Dimensions | 1905×1077×1077 mm / 75×42.4×42.4 in. |
| Software Update | OTA |
| Connectivity | 4G, Wireless Connectivity |
| Operating Temperature | -20℃ to 45℃ (-4°F to 113°F) |
| IP Rating | IPX4 |
| Cutting Height | 7-44 mm / 0.3-1.7 in. |
| Cutting Width | 686 mm / 27 in. |
| Reel Unit Weight | 65 kg (143.3 lb) |
| Reel Unit Dimensions | 1000×370×350 mm / 39.4×14.6×13.8 in. |
| Reel Speed | 300–2200 RPM |
| Number of Reels | 1 (8 Blades per reel) |
| Reel Diameter | 177 mm / 7 in. |
| Reel Width | 685 mm / 27 in. |
| Fast Battery Swapping | Yes |
| Battery Capacity | 8 KWh |
| Battery Life | 10h |
| Charging Time | 5h |
| Rated Operating Voltage | 48V |
